Reference Standards
Industry-certified reference standards and calibration blocks for accurate NDT calibration and validation. ISO 17025 & ASME compliant. Manufactured by DAKS Tools in Chennai, India.
Browse Reference Standards
Find the perfect solution for your NDT requirements

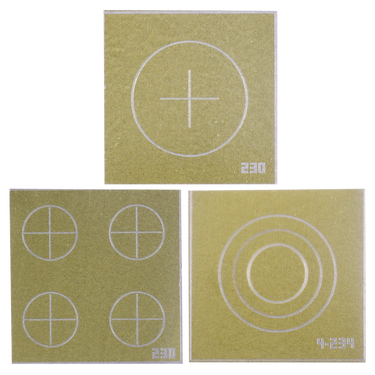

QQI MINIATURE KSC-4-230
Similar to KSC230, but with a compact design for the test part's tiny sections. The four circles can be divided into individual pieces for use. Shim thickness, at 30%, is.002" thick (0.05 mm)
MAGNETIC FLUX LEAKAGE CALIBRATION TUBE (MFL)
: Eddy current tube specifications. Are you prepared to request a standard quote? What we require is as follows: Which substance is it? (Wall, OD, and Alloy) The material will be supplied by the client or NDE? What size faults are required, and which ones? The majority of depths are indicated as a percentage of tube wall. Does the standard have to adhere to a specification? ASME, etc. Please send over any drawings or even just a quick hand sketch if you have any. We are experts in creating customised eddy current tubes and have years of experience cutting a wide variety of flaws. TWHs and FBHs, OD and ID grooves, milled flats, OD and ID thinning bands, ID FBHs, ID contoured flats, 120°/180 wearscars, tapering faults, and more
NICR 30-MICRON PANELS (ONE PAIR)
NiCr panels with 30 microns (One Pair) NiCr Test Panels make excellent comparisons when evaluating penetrant sensitivity

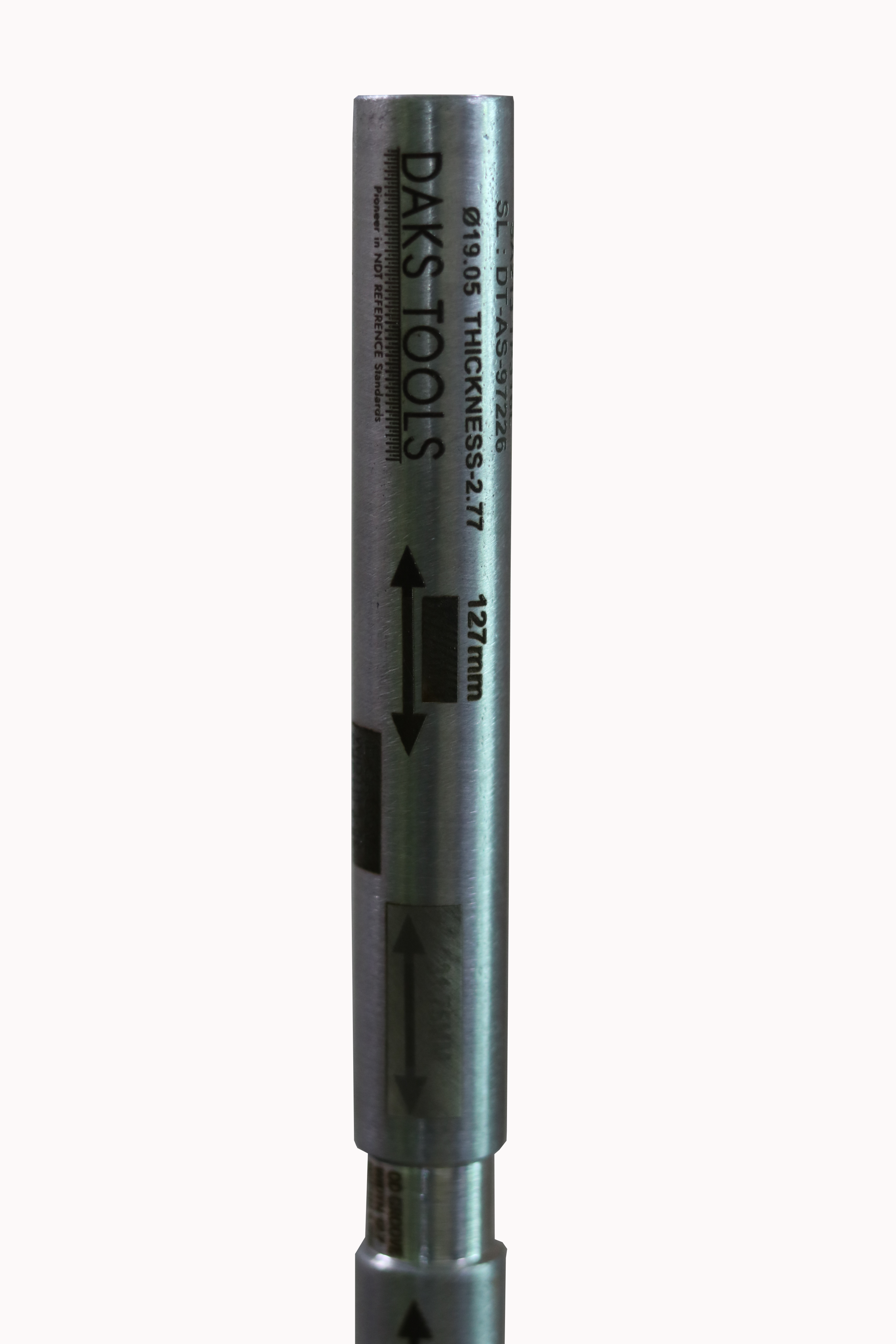

EDDY CURRENT TESTING CALIBRATION TUBE (ECT)
Eddy Current Tube Norms Have you prepared a basic quote request? We require the following: Which substance is it? Wall, alloy, and OD The content will be provided by the customer, or will NDE provide it? How big and what kind of flaws are required? (Most depths are indicated in percent of tube wall) Does the standard have any requirements that it must meet? (ASM, etc.) Please send along any artwork you may have, even if it's just a quick hand sketch. Our years of experience in machining a wide variety of flaws enable us to specialise in custom eddy current tubes. As well as TWHs and FBHs, OD and ID grooves, milled flats, and OD and ID thinning bands, there are also ID FBHs, ID contoured flats, 120°/180° wearscars, tapering defects, and other surface imperfections.

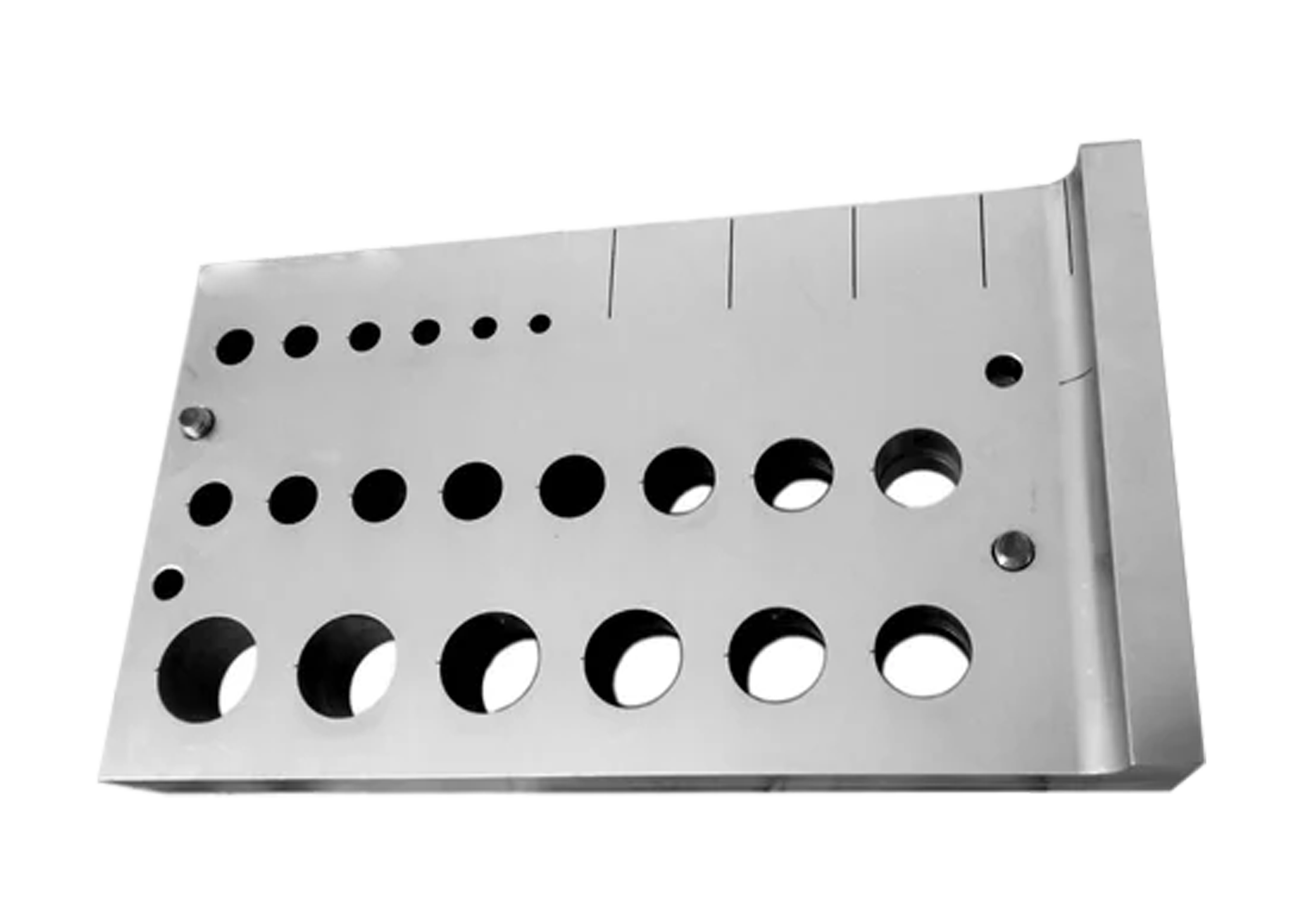

NAVY EDDY CURRENT STANDARD TEST BLOCK
This block is a reference standard developed for U.S. Navy applications and is used to calibrate or verify eddy current inspection systems. It contains known artificial defects to ensure inspection sensitivity and consistency meet Navy maintenance and inspection requirements.
ECT STANDARD CALIBRATION TUBE
Standards For Tube Inspection Calibration Our expertise in dealing with all types of simulated faults, including EDM notches, thinning, and expansions, puts us in a unique position to suggest policies and establish standards in place that improve the likelihood that you will be found during inspection of plants around the world. There is a sizable selection of tubing that meets ASME specifications. We may also provide tailored solutions to match the unique needs of our clients. NDE can assist with your needs for tube supports, unusual defects, or specialised packaging for the standards. Eddy Current Tube Standards are our area of expertise for custom eddy current tubes. You're prepared to ask for a quote on a standard. What is the substance? (Alloy, OD, and Wall) Does the standard have to adhere to any specifications? the ASME, etc. also have.
USAF GENERAL PURPOSE EDDY CURRENT STANDARD TEST BLOCK
This is a general-use reference block specified by the U.S. Air Force for eddy current inspections. It is used to calibrate and standardize eddy current equipment and to verify system performance across a range of typical inspection applications.

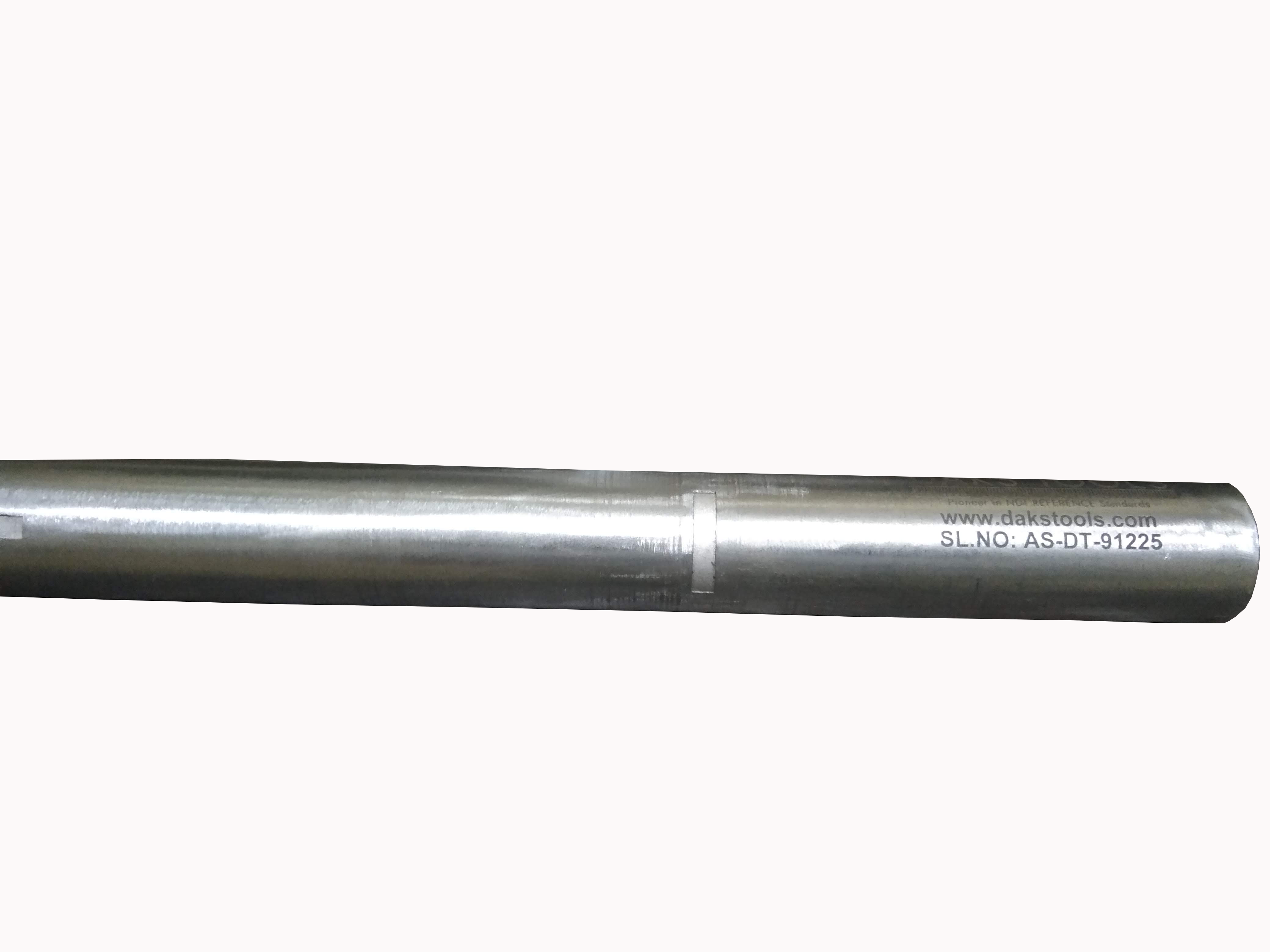

MFL STANDARD CALIBRATION TUBE
Standards For Tube Inspection Calibration Our expertise in dealing with all types of simulated faults, including EDM notches, thinning, and expansions, puts us in a unique position to suggest policies and establish standards in place that improve the likelihood that you will be found during inspection of plants around the world. There is a sizable selection of tubing that meets ASME specifications. We may also provide tailored solutions to match the unique needs of our clients. NDE can assist with your needs for tube supports, unusual defects, or specialised packaging for the standards. Eddy Current Tube Standards are our area of expertise for custom eddy current tubes. You're prepared to ask for a quote on a standard. What is the substance? (Alloy, OD, and Wall) Does the standard have to adhere to any specifications? the ASME, etc. also have.

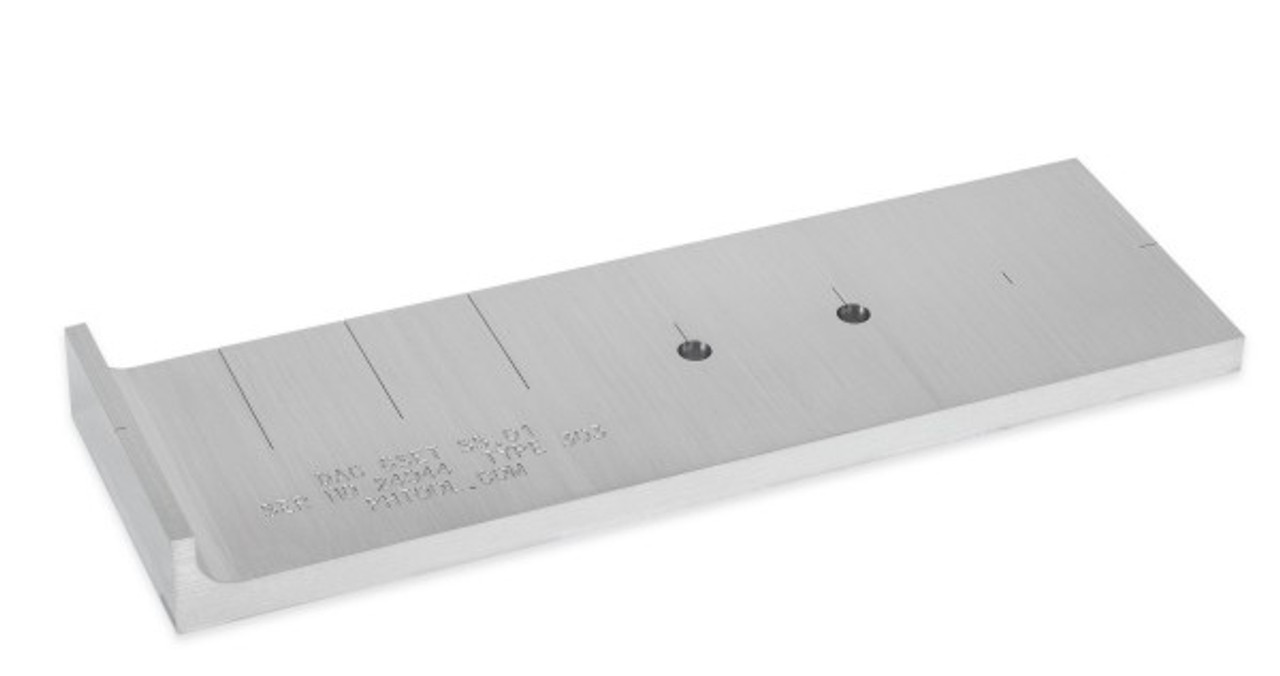

DAC GSET EDDY CURRENT STANDARD TEST BLOCK
This block is designed for Distance Amplitude Correction (DAC) and Gain Setting (GSET). It contains reference features at different locations or depths to help establish uniform signal response across varying probe positions. It is used to adjust gain and amplitude correction, ensuring consistent flaw detection over the inspection range.
3 NOTCH EDDY CURRENT STANDARD TEST BLOCK
This block contains three artificial notches of known and increasing depth or size. It is used to calibrate and standardize eddy current equipment by providing repeatable reference indications. The notches help set sensitivity, probe response, and flaw detection thresholds during system setup.
12 HOLE 15 NOTCH GENERAL PURPOSE, BOLT HOLE STANDARD BLOCK
General-purpose bolt hole standard block with 12 holes and 15 notches (Eddy Current)
QQI VARIABLE DEPTH KSCT-234
Three concentric circular defects with varying depths, used for more quantitative work. 20%/30%/40% of Shim thickness, .002" thick (0.05 mm).
