Validation Blocks
Precision-engineered validation blocks for NDT equipment calibration and accuracy verification. ISO 17025 certified. Manufactured by DAKS Tools in Chennai, India.
Browse Validation Blocks
Find the perfect solution for your NDT requirements

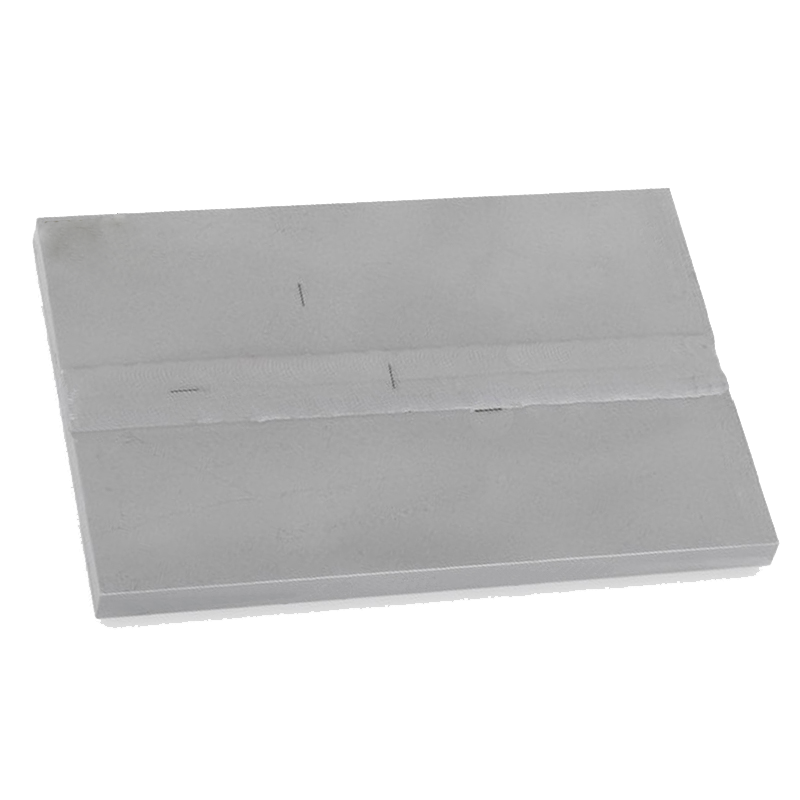

MIL STD 271F PERFORMANCE VERIFICATION REFERENCE TEST BLOCK
This block is used to validate the performance of eddy current inspection systems in accordance with MIL-STD-271F requirements. It confirms that the equipment, probe, and inspection setup can reliably detect specified reference discontinuities before or during inspection.

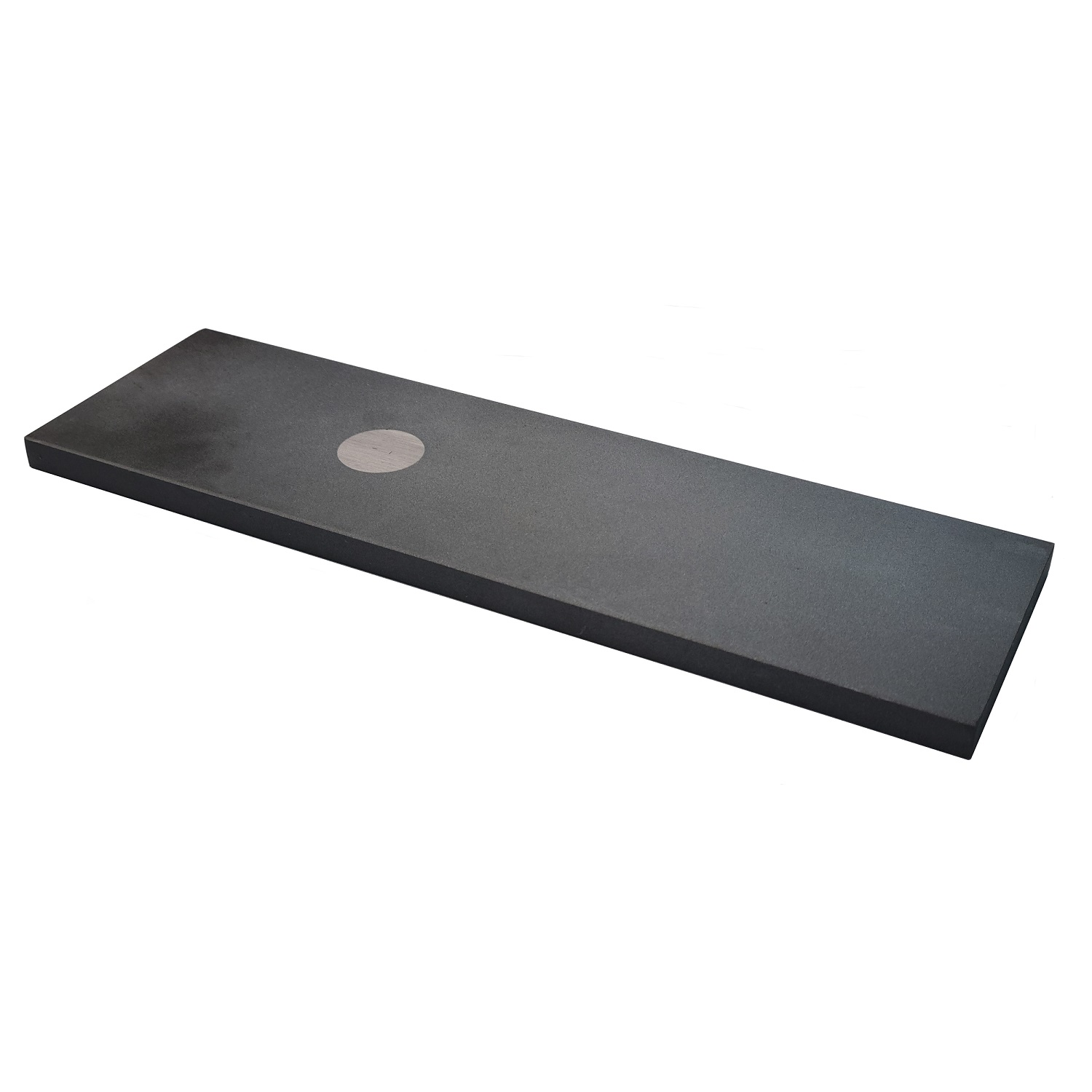

NA-16 NOTCH DEFECT TEST BAR
The technique calls for an inspection that can find even the smallest surface flaws that can be rejected from a test specimen, whether they are manmade or organic.

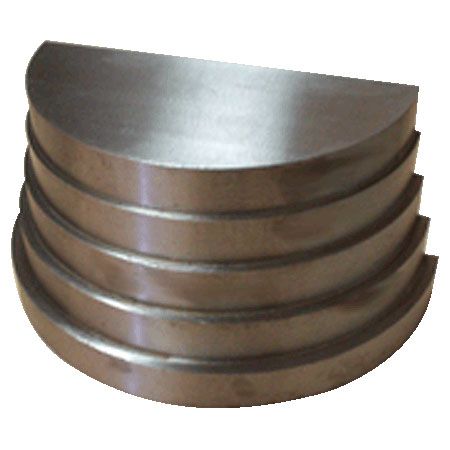

UT RESOLUTIONS BLOCK
UT Resolution block for evaluating the resolution of the shear wave probe. 1974, BS4331 part 3 2, 3, 4, and 5mm steps.

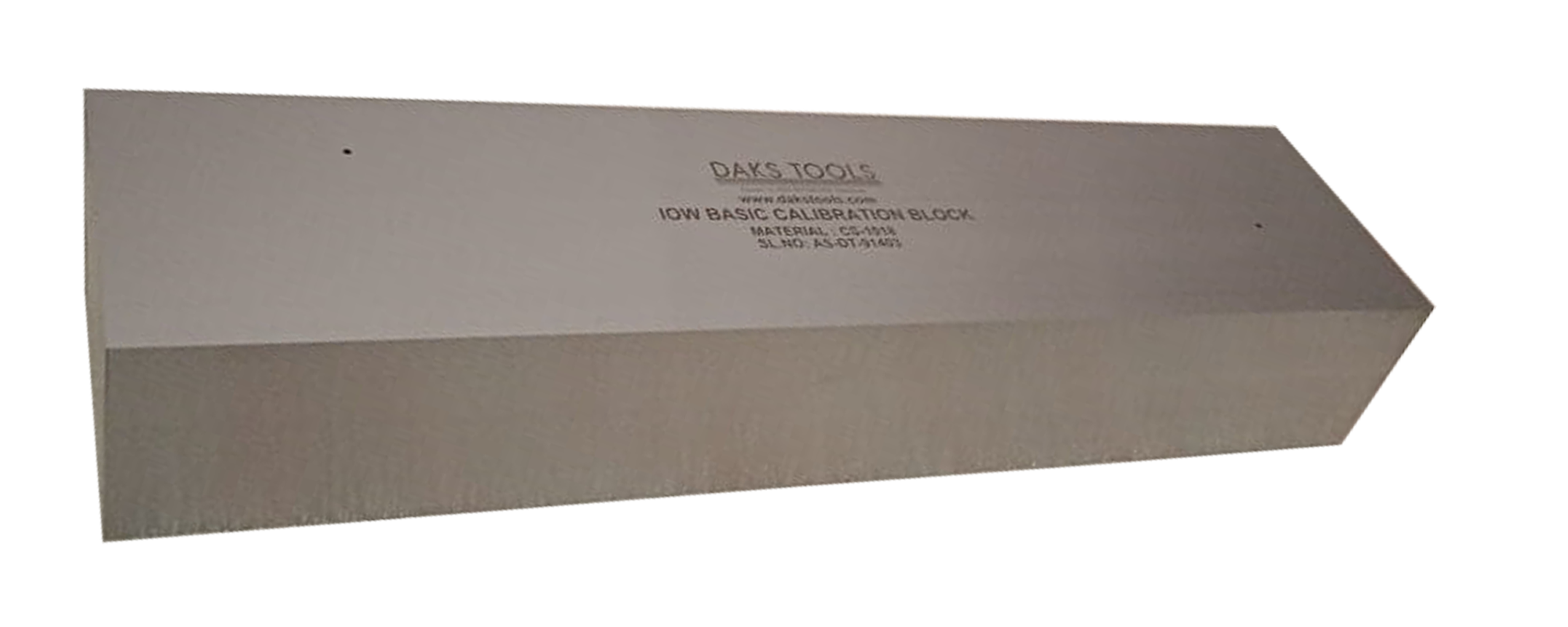

IOW TEST BLOCK METRIC VERSION
IOW Test Block Beam Profile Block Used to assess transducer angles and the beam profile of angle beam transducers.

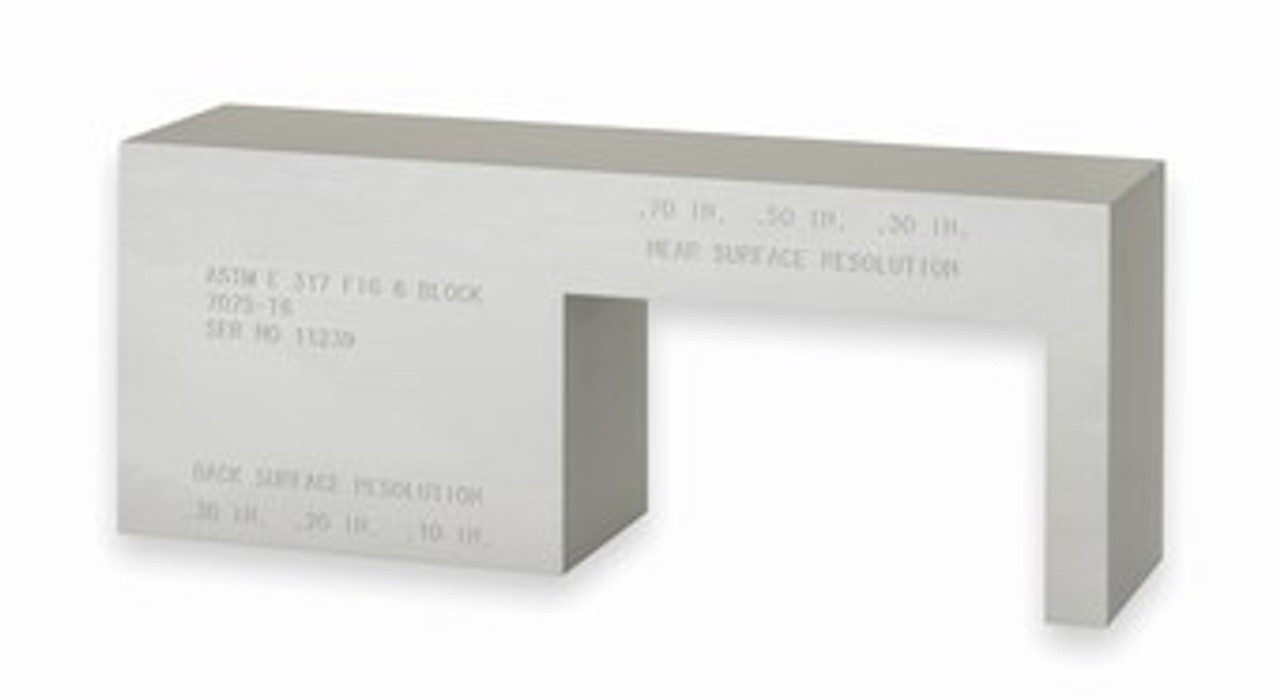

ASTM E317 TEST BLOCK FIGURE 6” METRIC VERSION
The resolution properties of ultrasonic pulse-echo systems are assessed using the ASTM E317 resolution block, Figure 6. Without the Use of Electronic Measurement Instruments, Performance Characteristics of Ultrasonic Pulse Echo Examination Instruments and Systems are evaluated.
ASTM E317 TEST BLOCK FIGURE 6” INCH VERSION
The resolution properties of ultrasonic pulse-echo systems are assessed using the ASTM E317 resolution block, Figure 6. Without the Use of Electronic Measurement Instruments, Performance Characteristics of Ultrasonic Pulse Echo Examination Instruments and Systems are evaluated.

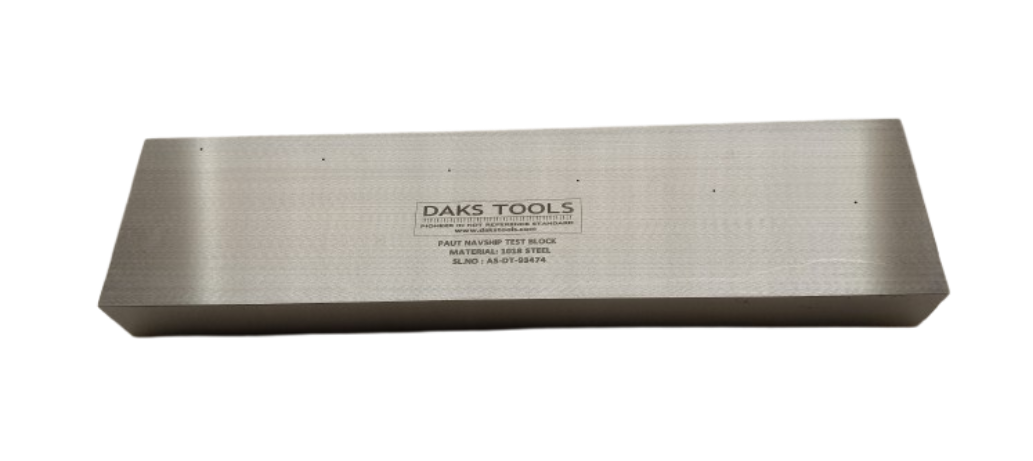

ULTRASONIC TESTING NAVSHIPS TEST BLOCK
The Ultrasonic Testing Navship Test Block is used to determine sensitivity levels, fault depth, and distance amplitude correction
PAUT Validation Block
Validation block for phased array ultrasonic testing
